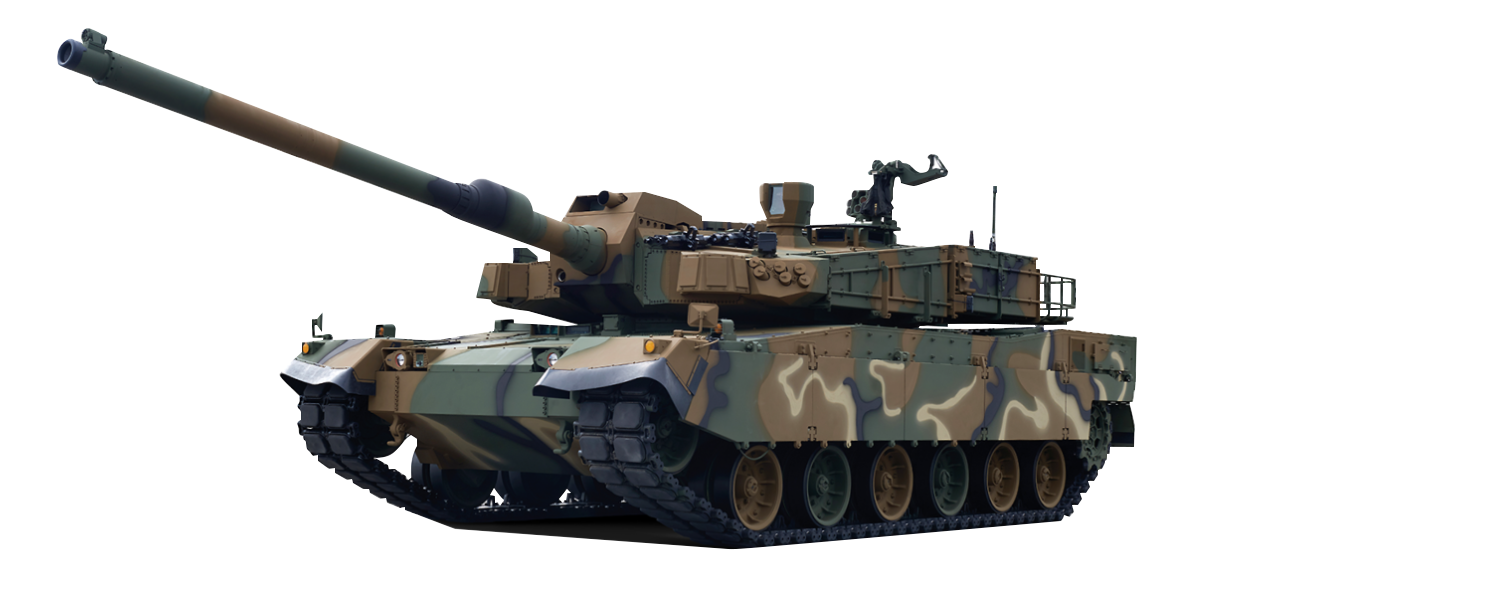

K2 Tank

The K2 Tank is a leading model in ground weapon systems,
equipped with cutting-edge technologies such as an active protection system and reactive armor.

K2 tank K2 tank K2 tank K2 tank K2 tank K2 tank K2 tank K2 tank

Turret Structure

Upper Deck

Side Wall Assembly (Left & Right)

Rotor Gun Mount

Cooling Housing

Chair Assembly

Storage Box Assembly

Ammunition Box

Plate

Front&Neer Fender Assembly

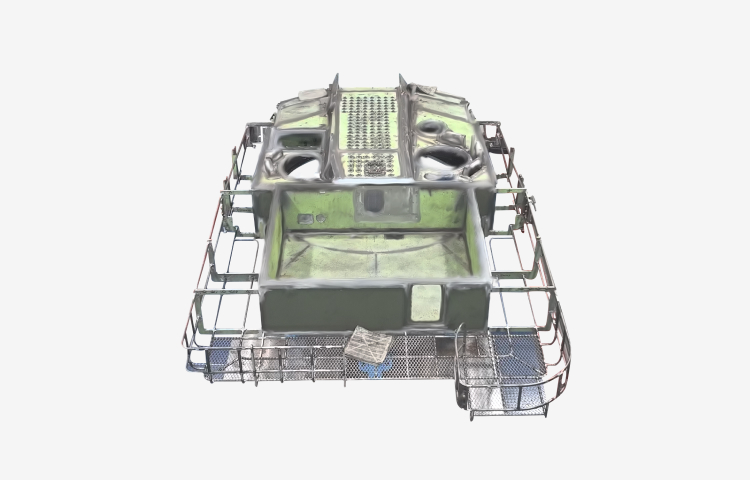

Turret Structure

  • Rotating weapon platform equipped with a 120mm 55-caliber smoothbore gun
  • High-strength steel front armor structure
  • Integrated mechanism connecting explosive reactive and composite armor on the turret
  • Houses key components including weapons, fire control systems, and protective devices

Upper Deck

  • Covers and protects the tank’s power pack
  • Functions as an air ventilation outlet for the power pack

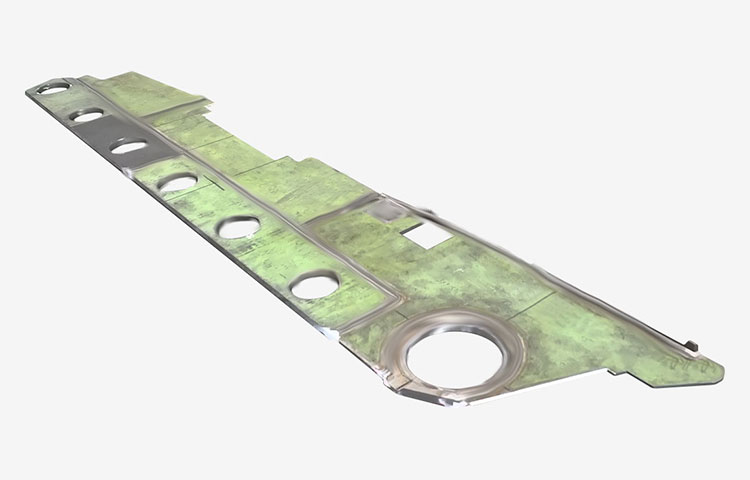

Side Wall Assembly (Left & Right)

  • Side structural component connected to the hull bottom plate, part of the tank hull
  • Provides lateral protection and connects with components of the track system

Rotor Gun Mount

  • Central mount for the tank's main gun; designed to allow vertical movement of the barrel

Cooling Housing

  • High-strength aluminum alloy component for transmission (1100 × 990 × 660 mm)
  • Installed on the power pack transmission, designed with internal channels to allow coolant circulation

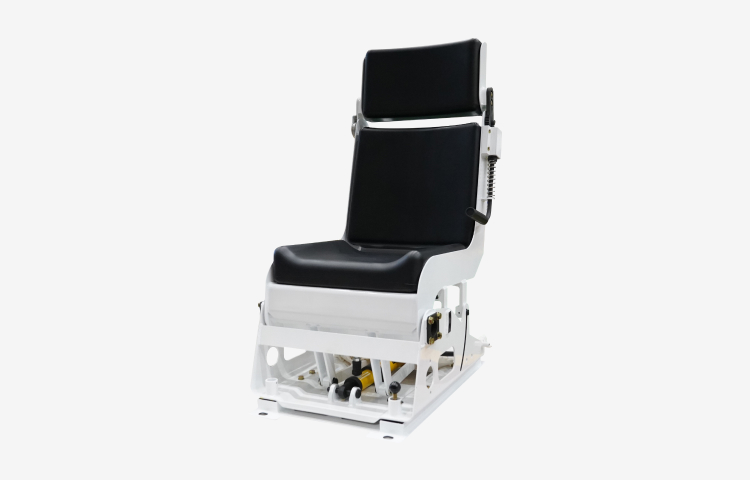

Chair Assembly

  • Provides an optimized seating posture for equipment operation inside the crew compartment
  • Allows vertical adjustment to accommodate different body types and enhance operator comfort

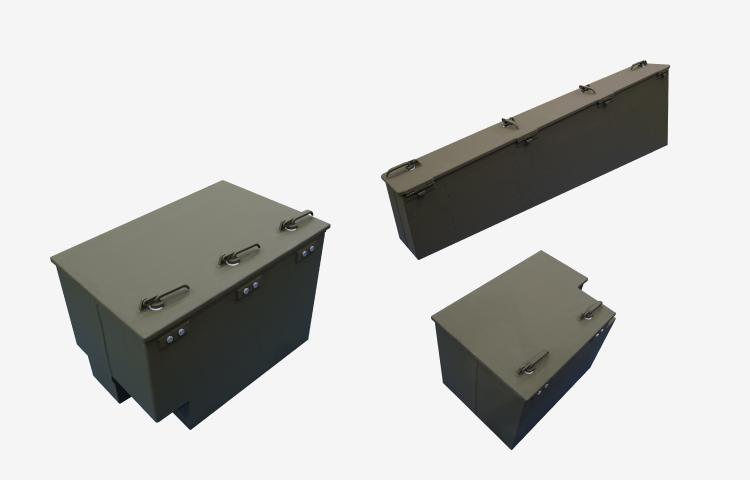

Storage Box Assembly

  • Waterproof external storage box for carrying supplies and equipment
  • Installed around the tank turret and used to store auxiliary gear such as basic issue items and spare parts
  • Maintains watertight integrity even during wading operations up to 4.1 meters in depth

Ammunition Box

  • Stores 7.62mm ammunition for secondary coaxial machine gun

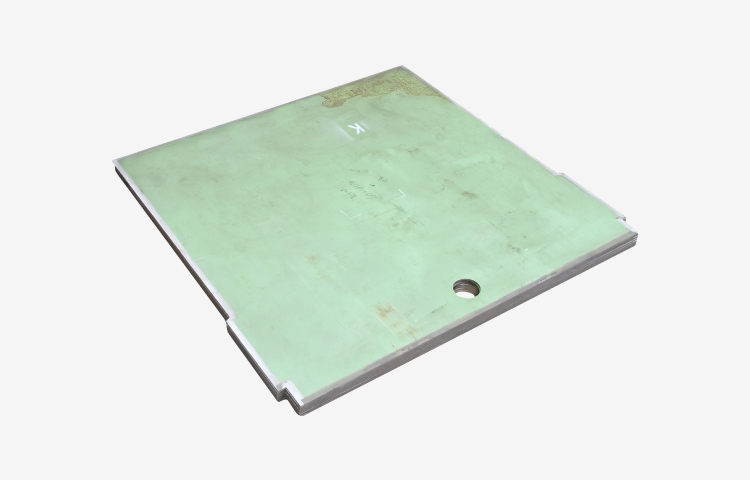

Plate

  • Serves as the foundational structure of the entire tank
  • Supports the tank’s weight and provides overall structural rigidity

Front&Neer Fender Assembly

  • Prevents mud and debris from splashing onto the hull and turret during movement
  • Designed with openings to allow easy installation and removal of the track system
