Technology & R&D

R&D Status

Composite Underbody Protection System Against Anti-Tank Mine Threats

Blast-Resistant Composite Armor Development

Anti-Penetration Armor Technology Development

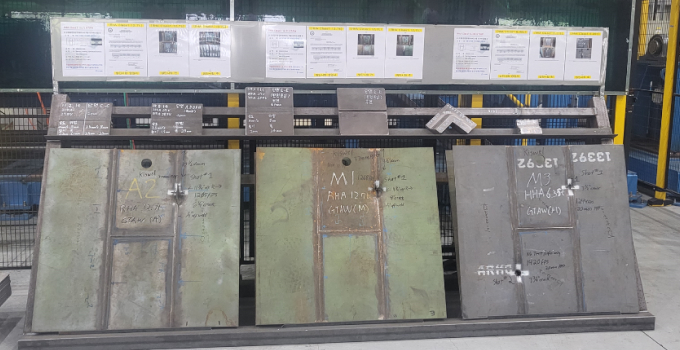

Development of PQR/WPS for GTAW and GMAW Welding of Armor Plate

By securing advanced welding technology for armor plates, we improve product efficiency, quality, safety, and cost-effectiveness—ultimately enhancing customer satisfaction.

  • step 01
    Specification Review
    TACOM 12479550, MIL-STD-3040
  • step 02
    Test Specimen Fabrication and Inspection
    Test Specimen Preparation, Welding, Inspection, and Ballistic Testing
  • step 03
    Documentation
    PQR/WPS Preparation and Final Approval by Customer
Category Material Thickness Remarks
Welding Method
GTAW Robotic Welding MIL-A -12560 RHA 12.7t 0.5in
Manual MIL-A -12560 RHA 12.7t 0.5in
MIL-DTL -46100 HHA 6.35t 0.25in
GMAW Robotic Welding MIL-A -12560 RHA 25.4t 1in
MIL-A -12560 RHA 38.1t 1.5in

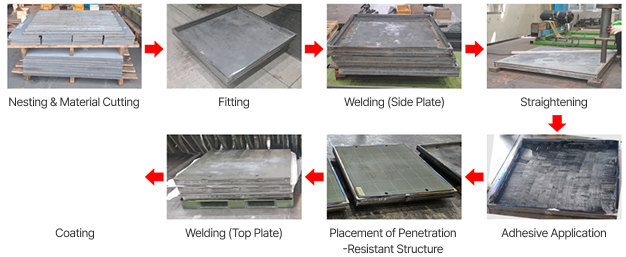

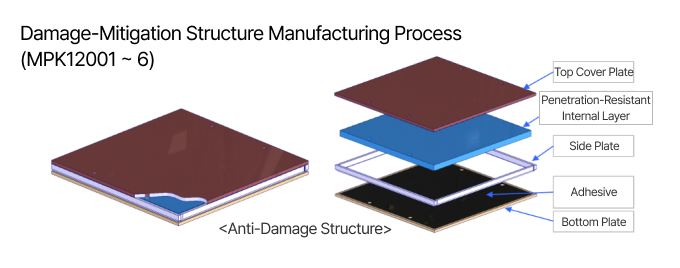

Development of Prototype and Structural Mockups for Frontal Armor Performance Validation

Prototype Test Structure for Frontal Armor Validation

Material Preparation

Fitting & Tacking

Insertion of Supplied Special Materials

Center Marking

Finish Coating

Nondestructive Testing & Correction

Welding
